The Foundation of Long-Term Pipe Performance
When it comes to industrial and commercial piping, the choice of pipe support is not a minor detail—it’s a critical decision that impacts your operational budget, energy footprint, and system lifespan. While direct-to-pipe attachment might seem like the simpler option, it introduces fundamental flaws that lead to high long-run costs.
This article explores why choosing pre-insulated supports from Pipe Shields is the superior strategy compared to conventional direct welding or attachment, delivering unmatched benefits in energy efficiency, reduced heat loss, long-term budget savings, easy, cost-effective maintenance, and pipeline protection.
The Hidden Costs of Direct-to-Pipe Attachment
Directly attaching or welding a support to a pipe, often called a “hard connection,” creates a severe thermal and mechanical weak point.
The Thermal Leak: Heat Loss and Energy Waste
A metal support welded directly to a hot or cold insulated pipe bypasses the insulation, creating a “thermal bridge.” This metal pathway acts like a heat sink (for hot pipes) or a heat source (for cold pipes), rapidly transferring thermal energy to the outside environment or the support structure.
- Massive Energy Inefficiency: This constant heat transfer leads to substantial energy loss, forcing systems to work harder, consuming more fuel or electricity, and inflating utility bills. What you save on installation, you quickly spend on wasted energy.
- Condensation Risk: In cryogenic or chilled water systems, the cold surface of the support where it meets the pipe drops below the ambient dew point, causing immediate condensation. This moisture saturation destroys the adjacent conventional insulation, leading to Corrosion Under Insulation (CUI)—an expensive form of pipe degradation.
The Structural Risk: Damage and Leaking
Direct welding introduces material stress and maintenance complexity:
- Stress Concentrations: Welding alters the metallurgy of the pipe material at the connection, creating a high-stress concentration. Over time, due to thermal expansion, vibration, and system pressure, this can lead to fatigue cracking and potential leaking.
- Complex Maintenance: If the support needs repair or replacement, it often requires cutting and re-welding, which demands extensive downtime and specialized labor, whereas minimal/no welding is required for initial installation with pre-insulated supports.
The Pipe Shields Advantage: Why Pre-Insulated Supports Win
Pre-insulated supports are engineered to solve the inherent problems of direct attachment, offering a solution that pays for itself over the life of the pipeline.
1. Eliminating the Thermal Bridge

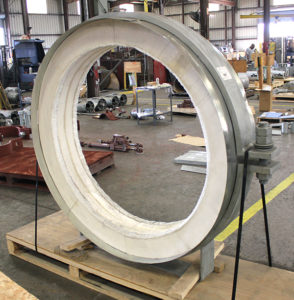

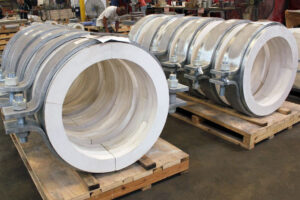

Pre-insulated supports feature a high-density, load-bearing insulation material (such as calcium silicate or polyisocyanurate) that is factory-installed between the pipe and the metal support shield.
- Maximum Heat Retention: The load-bearing insulation material provides a continuous thermal break, effectively preventing heat loss or gain and ensuring the insulation system remains intact. This adherence to thermal specifications is crucial for long-run budget savings through sustained energy efficiency.
- CUI Prevention: By maintaining the pipe surface temperature above the dew point, these supports prevent condensation that causes CUI, actively protecting the pipeline from damage and leaks.
2. Easy, Economic, and Non-Invasive Installation
Pipe Shields’ pre-engineered solutions are designed for speed and simplicity.
- Minimum and No Welding Required: Unlike complex connections, pre-insulated supports typically clamp onto the pipe. This non-invasive method eliminates the need for hot-work permits and costly field welding, significantly reducing installation time and costs.
- Economic Maintenance: Because they are bolted or clamped, the supports can be easily inspected, maintained, or replaced without damaging the pipe or disrupting the thermal integrity of the system. This translates directly into easy, cost-effective maintenance.
3. Long-Term System Integrity
The use of a support shell and a load-bearing insert ensures that the mechanical load on the pipe is evenly distributed across its surface without damaging the pipe or the insulation, protecting the overall system from premature failure.
Choosing pre-insulated supports is not an expense; it is a vital investment in the long-term reliability and cost-effectiveness of your operation.
While direct attachment offers a minimal upfront cost saving, it guarantees ongoing energy waste, thermal failure, and future maintenance nightmares. Pipe Shields’ pre-insulated supports deliver a complete solution that maximizes energy performance, ensures code compliance, and future-proofs your pipeline against corrosion and structural failure.
Ready to Eliminate Thermal Bridges and Slash Operating Costs?
Invest in Pipe Shields’ pre-insulated pipe supports to slash energy waste, eliminate costly maintenance, and ensure the long-term efficiency of your critical piping systems. Pipe Shields pioneered the pre-insulated support now known across the industry as a pipe shield. We’re ready to leverage 50 years of experience to protect your pipeline and connected components.
Request a custom quote on how our pre-insulated support solutions can be engineered to deliver superior energy efficiency and long-term savings for your next project. Don’t let your supports be your system’s weakest link—build on a solid foundation with Pipe Shields.
