The Critical Role of Pre-Insulated Pipe Supports: Where Systems Fail First
Pre-insulated pipe supports are critical to any industrial or HVAC piping system, yet they are often the first point of a problem. For pre-insulated (or cryogenic) lines, the pre-insulated pipe support point is a critical connection where thermal, mechanical, and environmental stresses converge. When the insulation or protective jacket fails at this pre-insulated pipe support point, you don’t just lose efficiency: you create a pathway for the “rot” of Corrosion Under Insulation (CUI), excessive heat loss/gain, and mechanical failure. The Pipe Shields Field Services Team provides rapid diagnostics and practical, permanent solutions to address these weak links before a minor repair becomes an expensive, system-wide shutdown.
5 Maintenance Nightmares and Your Pipe Shields Field Repair Playbook
The most common issues found during inspections of pre-insulated pipe supports require a rapid, focused response. Here are the top five challenges and the field-ready fixes implemented by the Pipe Shields Field Services Team.
1. Challenge: Insulation Compression and Crushing
The weight of the pipe, fluid, and external forces compress the insulation material (e.g., foam, calcium silicate, polyurethane, or cellular glass) directly under the pipe clamp or pre-insulated pipe support shoe. This compression drastically reduces the insulation’s R-value, creating an immediate thermal short circuit and rapid temperature change at the pre-insulated pipe support point.
- Pipe Shields Field Service Solution: The Pipe Shields team immediately replaces the crushed insulation section with proprietary, high-density pipe shield inserts. We custom-fit and install specialized load-bearing material (such as Phenolic or Polyurethane) with a certified, continuous vapor seal, guaranteeing zero-compression protection and permanently stopping the thermal short circuit at the pre-insulated pipe support.
2. Challenge: Corrosion Under Insulation (CUI)
Water ingress, often originating from a breach in the outer jacket near the pre-insulated pipe support, gets trapped between the pipe wall and the insulation. This creates a perfect, oxygen-starved environment for severe pipe wall thinning or pitting, a phenomenon known as CUI. This is the single greatest threat to the integrity of pre-insulated pipe supports.
- Pipe Shields Field Service Solution: Our CUI specialists conduct a targeted, non-destructive inspection (NDT) to assess the pipe wall integrity. If CUI is confirmed, the Pipe Shields team will strip the compromised insulation, clean the pipe surface, apply necessary surface preparations (coatings or wraps), and then re-insulate with an impervious Pipe Shield system that features a permanent moisture barrier, eliminating the source of future CUI at the pre-insulated pipe support.
3. Challenge: Jacket/Vapor Barrier Compromise
The outer aluminum, PVC, or stainless steel jacket is the first line of defense. Tears, punctures, or improperly sealed seams allow atmospheric moisture to enter the insulation, worsening all other problems. Field workers often overlook small tears in the jacket of the pre-insulated pipe support, which can lead to systemic failure.
- Pipe Shields Field Service Solution: The team’s primary focus is rapid barrier restoration. For minor damage, we utilize specialized, industrial-grade mastics and vapor-proof tapes to achieve a rapid, hermetic seal. For significant jacket damage around the pre-insulated pipe support, we provide and install pre-fabricated, bolt-on jacketing patches with meticulously sealed overlaps to restore a complete, continuous vapor barrier and protect the newly installed Pipe Shield.
4. Challenge: Improper Hanger or Clamp Alignment
If the pipe hanger or clamp isn’t perfectly aligned or if the attachment bolts are loose, the pipe can shift, causing abrasion against the pre-insulated pipe support shoe or bracket. This movement grinds away the insulation jacket and integrity over time.
- Pipe Shields Field Service Solution: Our technicians begin with a mechanical audit, inspecting and retorquing all attachment hardware to specification. Following this, the team installs custom-engineered hardware, such as pipe guides, stops, or specialized clamps, that properly integrate with our Pipe Shield inserts at the pre-insulated pipe support. This ensures the line is securely held in position, eliminating friction-related insulation damage and preventing costly movement.
5. Challenge: Frost/Ice Formation (Cryogenic/Refrigeration Lines)
On cold lines, a compromised pre-insulated pipe support or thermal short circuit will manifest immediately as a ring of frost or ice build-up around the pipe support point. This signals a total insulation failure and continuous energy loss, adding significant weight stress and potential damage.
- Pipe Shields Field Service Solution: The presence of ice triggers an emergency thermal repair. The Pipe Shields team is dispatched to safely de-ice, strip, and thoroughly dry the pre-insulated pipe support area (a critical step often missed by general crews). We then rapidly install our proprietary, closed-cell, water-resistant Pipe Shield inserts, designed for cryogenic applications, immediately restoring the R-value and providing an intact, durable vapor-barrier system that prevents future ice formation at the pre-insulated pipe support.
Guarantee R-Value Integrity at Every Hanger Point with Pipe Shields

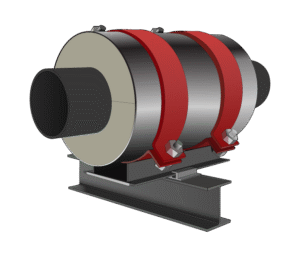

The moment standard insulation material comes into contact with a hanger or clamp, its thermal efficiency is compromised. We solved this critical engineering flaw. Our engineered load-bearing pre-insulated pipe supports use high-density, zero-compression material, integrated with a continuous, permanent vapor seal, to maintain the insulation’s intended R-value precisely at the hanger point. This guarantees thermal performance and eliminates the primary pathway for CUI and energy loss across your entire pre-insulated system.
Don’t Wait for the Drip! System failure starts with a single compromised pre-insulated pipe support. Is your maintenance team equipped to handle these top 5 challenges quickly and permanently? Contact the Pipe Shields Field Services Team today to schedule an on-site audit of your critical infrastructure and discover how our integrated service solutions can permanently end CUI and insulation compression in your facility.
